Round Back D Shaped Glass Clamp – 6mm to 12mm Glass

Round Back D Shaped Glass Clamp for Round Balustrade Posts

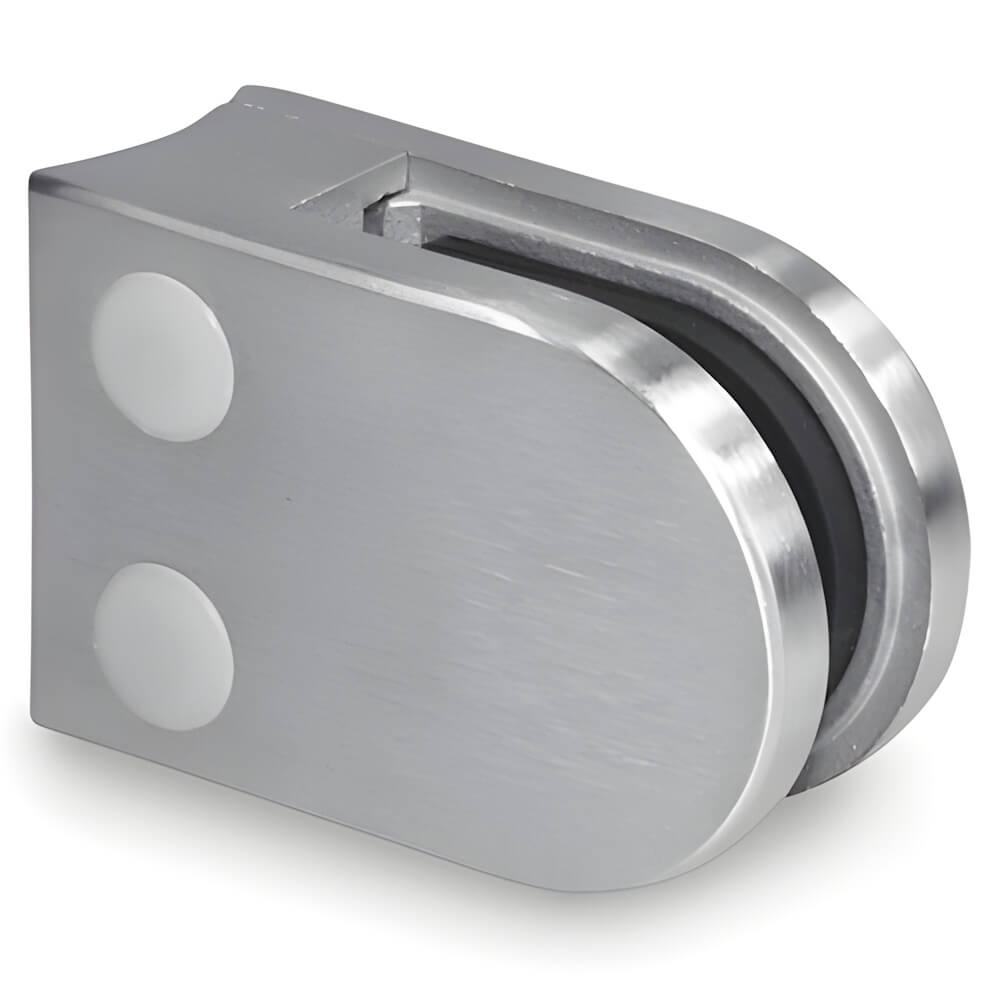

This high-quality D shaped glass clamp features a curved back designed specifically for fixing glass panels to round stainless steel posts.

Suitable for both internal and external applications, this versatile clamp can be used with 6mm, 8mm, 10mm or 12mm glass and fits Ø42.4mm or Ø48.3mm round posts.

Ideal for glass balustrades, staircases, partitions, railings, windbreaks and other architectural glass applications.

Product Features

• Suitable for 6mm, 8mm, 10mm and 12mm glass
• Curved back for round posts
• Fits Ø42.4mm and Ø48.3mm diameter posts
• 316 grade stainless steel
• Suitable for indoor and outdoor applications
• Satin brushed stainless steel finish
• Supplied with rubber gasket, cover caps and security pin
• Suitable for toughened glass balustrade applications

Please select your required glass thickness and post diameter when ordering.

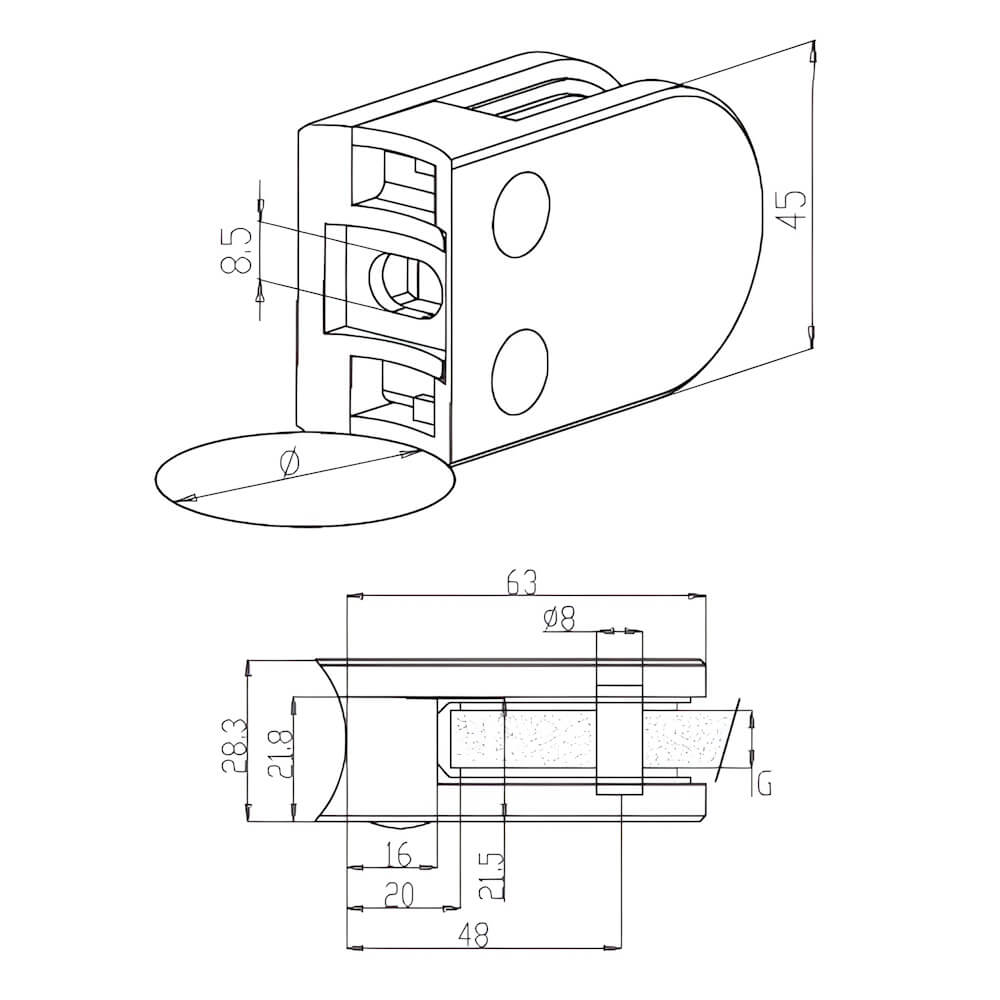

The fixing screw required will depend on the material the clamp is being fixed to. An M8 socket-head fixing is typically used when attaching the clamp to a stainless steel post.

For balustrade installations, glass specification and fixing positions should always be appropriate for the individual application.
