Glass Bath Screens

£259.40 - £301.74

This product is bespoke and made to order.

Quantity

Product Description

These made-to-order glass bath screens use 8mm clear toughened safety glass to provide a practical splash barrier over a straight bath. Each screen is 1500mm high, with a choice of 600mm, 700mm or 800mm widths and glass-to-wall hinge finishes to suit your bathroom.

A clear bath screen keeps the shower area feeling open, especially when the bathroom is compact. It helps contain everyday spray when showering over the bath without covering the tiles or making the room feel crowded. The simple rectangular panel also works well with a wide variety of bathroom fittings.

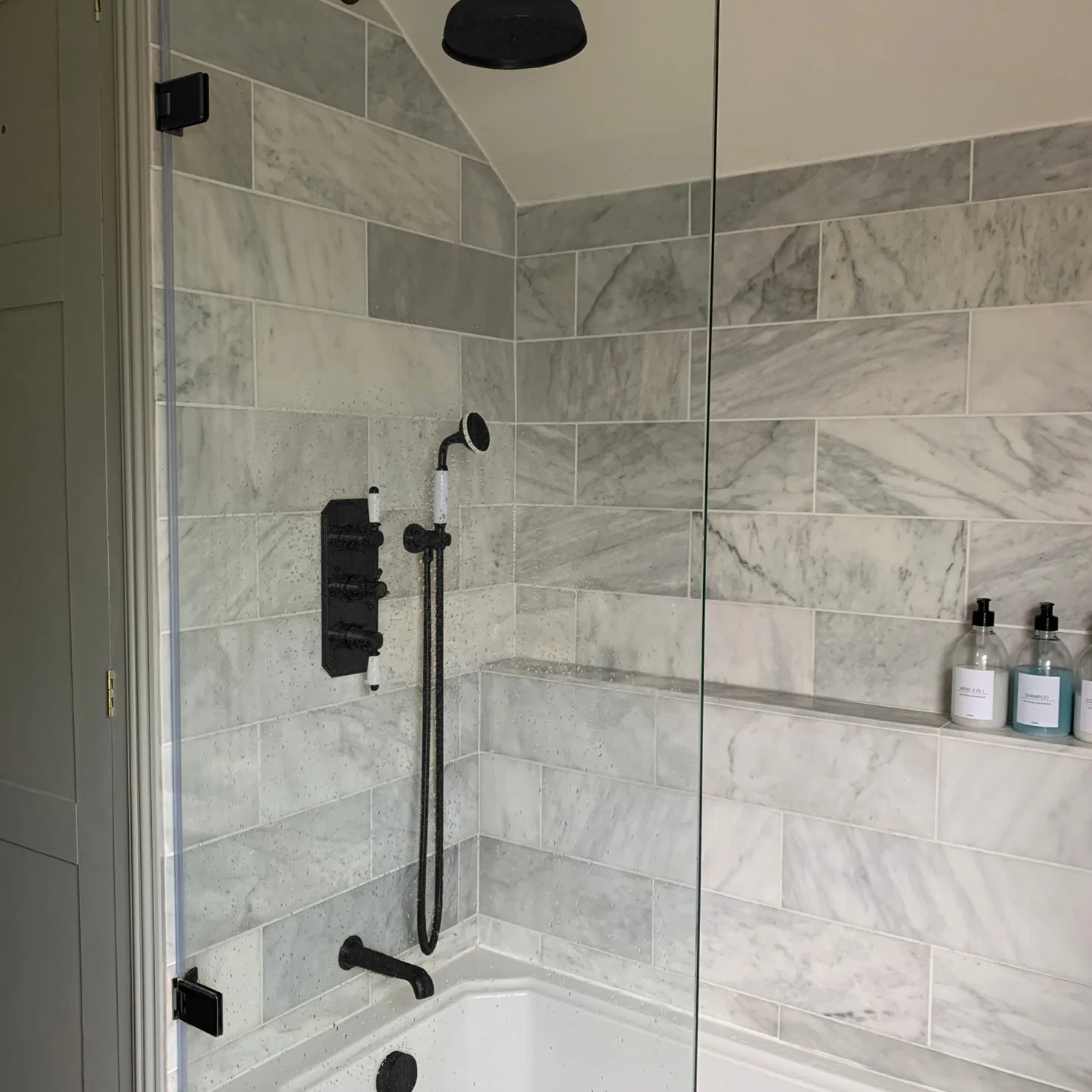

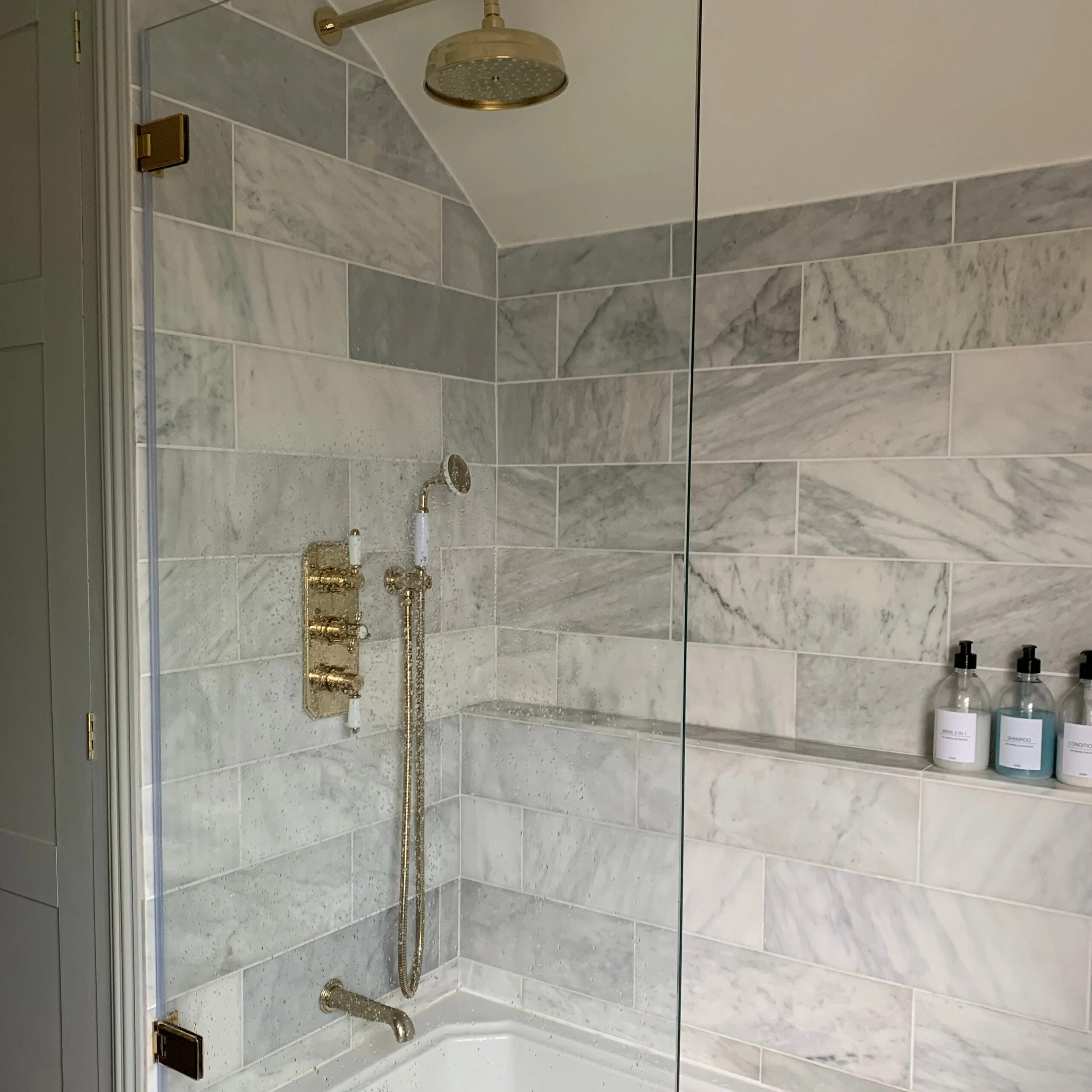

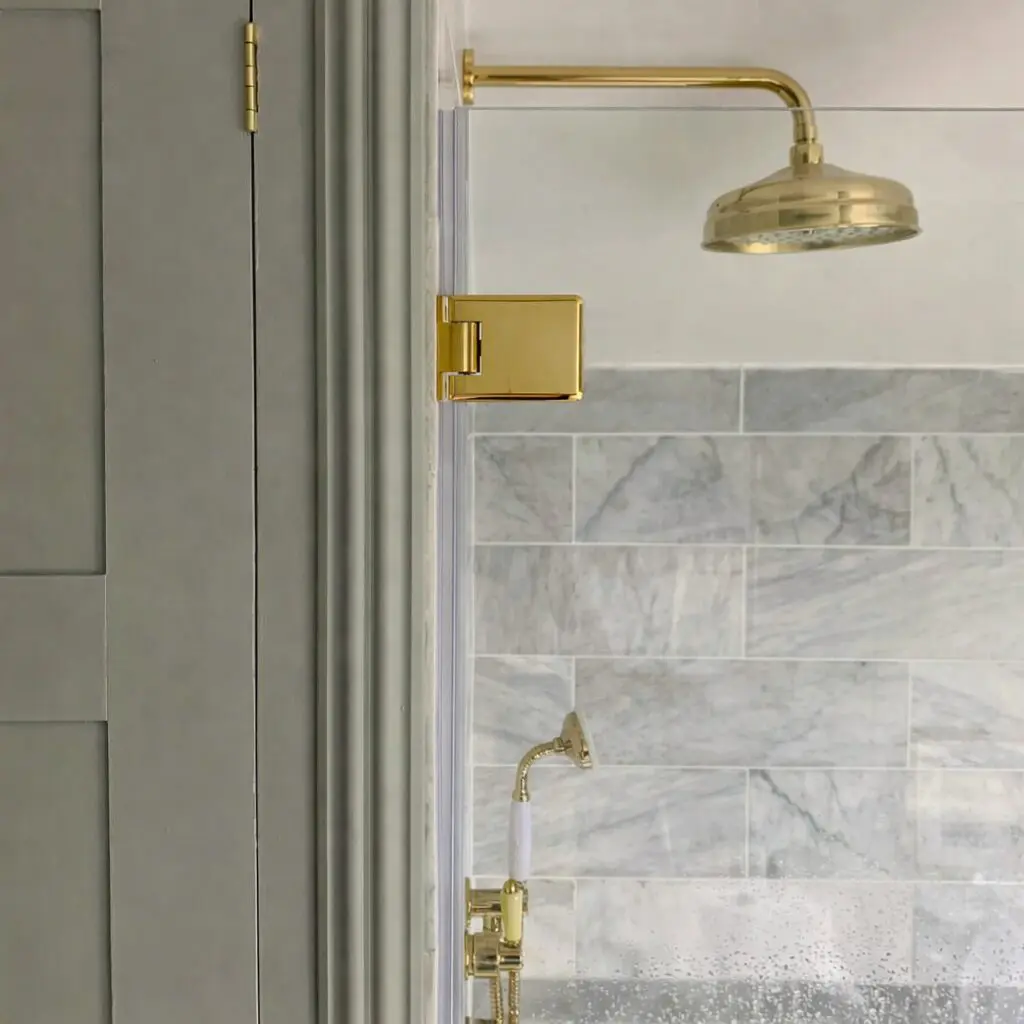

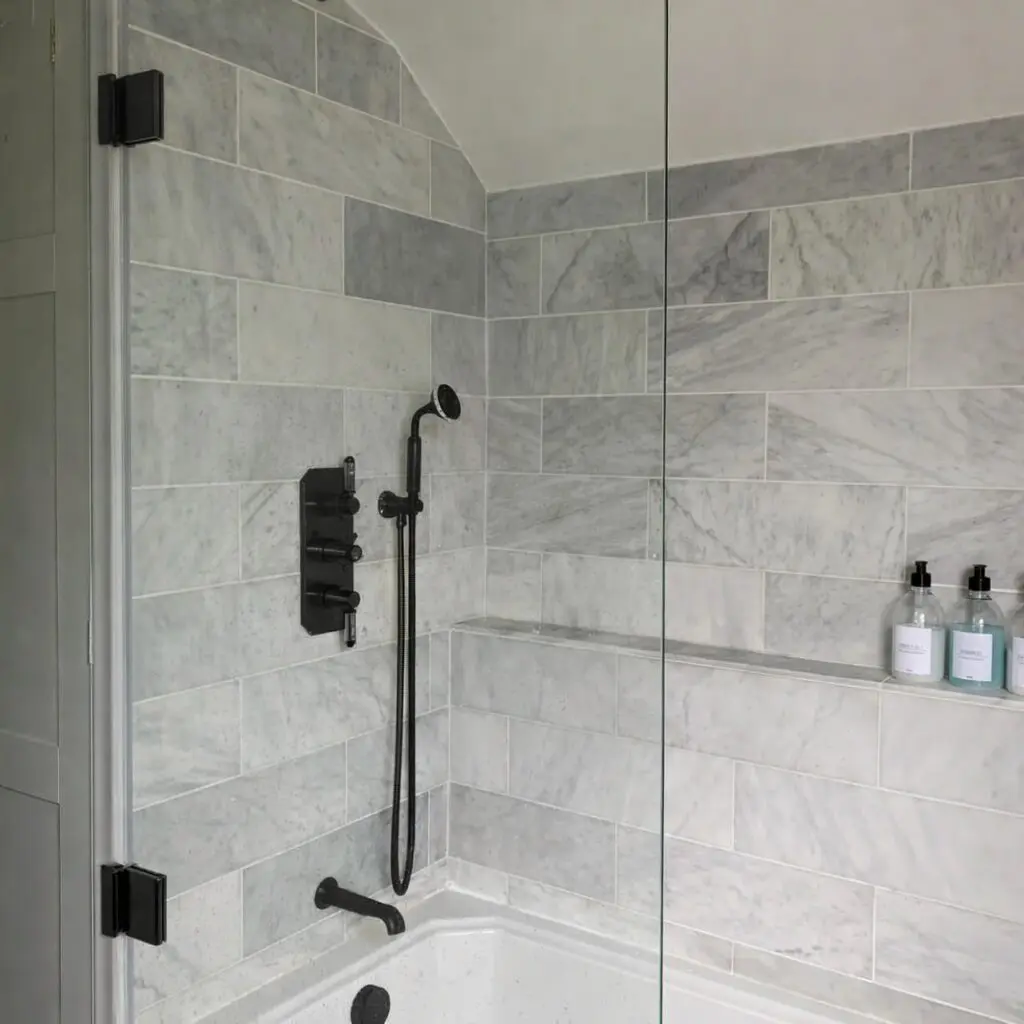

The screen is offered with glass-to-wall hinge finishes in chrome, stainless steel, matt black, polished brass and brushed brass. The clear glass gives an uninterrupted view of the wall finish, while the chosen hinge colour can tie in with taps, shower fittings and other hardware.

Select a 600mm x 1500mm, 700mm x 1500mm or 800mm x 1500mm panel according to the bath and the position of the shower. The dimensions refer to the glass screen size, so the final installation must also allow for the chosen hinge, wall surface and appropriate clearances.

Before ordering, check that the fixing wall is suitable and that the screen can be positioned without interfering with taps or other bathroom fittings. Confirm the hinge arrangement and any seals or wall fixings needed for the installation. A bathroom fitter should set the glass securely and align it to minimise water escaping past the bath edge.

Keep the clear glass looking its best with a soft cloth or squeegee after use and a mild, non-abrasive cleaner for routine maintenance. Check the hinge fixings from time to time and avoid using the panel as a support when getting into or out of the bath.

Product Highlights

Our glass bath screens are made from 8mm clear toughened safety glass and stand 1500mm high. They give you a splash-free shower over a straight bath without the hassle and discomfort of a curtain.

Choose a 600mm, 700mm, or 800mm width*, then pick from five glass-to-wall hinge finishes in chrome, stainless steel, matt black, brushed brass, or polished brass. The hinges open 90° in both directions, so your bath glass screen can be fitted on either side of the bath.

Each screen is made to order – select your size and hinge colour to see your price and add it to your online basket to check out.

*Please note: It is the customer’s responsibility to ensure their project is compliant with safety regulations, and to check planning permission requirements beforehand.

Product Additional information

Glass Screen Size (mm)

600mm x 1500mm, 700mm x 1500mm, 800mm x 1500mm

Hinge Type

Glass-to-Wall

Colour of Hinges

Brushed Brass, Matt Black, Polished Brass, Chrome, Stainless Steel

Glass Type

Clear Toughened Glass

Glass Thickness

8 mm

Room Type

Bathroom

Product Downloads

Product Enquiry


    Accept GDPR policy to send email (required)
    SKU: N/A Category:

    People Also Bought

    • black glass partition

      Glass Partitions

      £127.05 - £190.57
      Get a Quote - Glass Partitions This product has multiple variants. The options may be chosen on the product page

      This item is made to order

    • Clear Glass Door Main image

      Glass Doors

      £59.58 - £128.33
      Build & Buy - Glass Doors This product has multiple variants. The options may be chosen on the product page

      This item is made to order

    • Bespoke Shower Screens

      Bespoke Shower Screens

      £59.58 - £597.13
      Build & Buy - Bespoke Shower Screens This product has multiple variants. The options may be chosen on the product page

      This item is made to order

    Glass Bath Screens for Shower Baths

    A glass bath screen is the simplest way to turn a straight bath into a practical shower bath combo. Fixed to the wall on hinges, the panel keeps water inside the bath while you shower, then swings out of the way when you want a soak or need to clean the bathroom.

    We use 8mm clear toughened safety glass for bath screens because it’s several times stronger than standard glass of the same thickness. Plus, if it does ever break, it shatters into small blunt pieces rather than sharp shards, something that can make bathrooms even safer.



    Benefits of Having a Glass Bath Screen

    • A dry bathroom floor – A rigid glass panel stops splashes much more effectively than a curtain that can move as you shower.
    • Increased hygiene – As glass is non-porous, there is nowhere for mould or mildew to adhere and grow.
    • Easy to clean – A quick wipe or squeegee after showering helps prevent limescale and water marks.
    • A lighter, more open room – Clear glass lets light through and keeps sight lines open, which helps smaller bathrooms feel bigger.
    • Built to last – A toughened glass screen will outlast many, many shower curtains.
    • Easy access – As the hinged panel swings clear, getting in and out of the bath is simple and unhindered.
    • A finish to match – Five hinge colours let you coordinate with your taps, shower, and accessories.



    What are the Standard Sizes for Glass Bath Screens?

    Most bath screens in the UK are between 1400mm and 1500mm tall and between 700mm and 900mm wide.

    Ours are 1500mm high, which suits most overhead and riser-rail showers, and come in three widths:

    Width

    Best for

    600mm  Compact or very crowded bathrooms where space is limited between basins, toilets, and towel rails
    700mm Most standard shower baths
    800mm  Maximum splash coverage, which is essential for fixed overhead showers



    All of our bath screen glass is 8mm thick with polished edges. To choose a width, measure along the bath from the wall to just past where the shower spray lands. Then, check that the bath glass panel has room to swing without hitting anything.

    Need a different size, a curved, two-panel design, or glass for an L-shaped bath? Our bespoke shower screens can be made-to-measure for over-bath installations.



    How to fit a Glass Bath Screen?

    If you’re comfortable with DIY, you can fit a hinged glass bath screen, but you should plan for two people as an 800mm bath glass panel weighs around 24kg.

    • Check the bath and wall – The bath should be level with a flat rim; hinged screens aren’t suitable for roll-top or stepped edges. Check the wall for hidden pipes and cables before drilling.
    • Position the glass – Stand the screen on packers on the bath rim so it sits on the inside edge, and check it’s plumb with a spirit level.
    • Mark and drill – Mark the hinge plate positions and drill through the tiles with a tile bit on your drill. Now switch to a masonry bit and insert wall plugs. If you have hollow walls, you’ll need to find alternative fixings.
    • Fix the hinges and hang the screen – Screw the hinge plates to the wall, secure the bath glass screen in the hinges and check it swings through 90° each way.
    • Fit the bottom seal – Push the glass seal onto the bottom edge with the fin facing into the bath.
    • Seal and cure – Follow the hinge instructions for sealing and don’t use the shower until the silicone has fully cured – this should take around 24 hours.

    We’d recommend a professional installer if your walls are hollow, out of plumb, or untiled.

    For recommendations of preferred installers, reach out to the team.



    Choose Your Hinge Finish

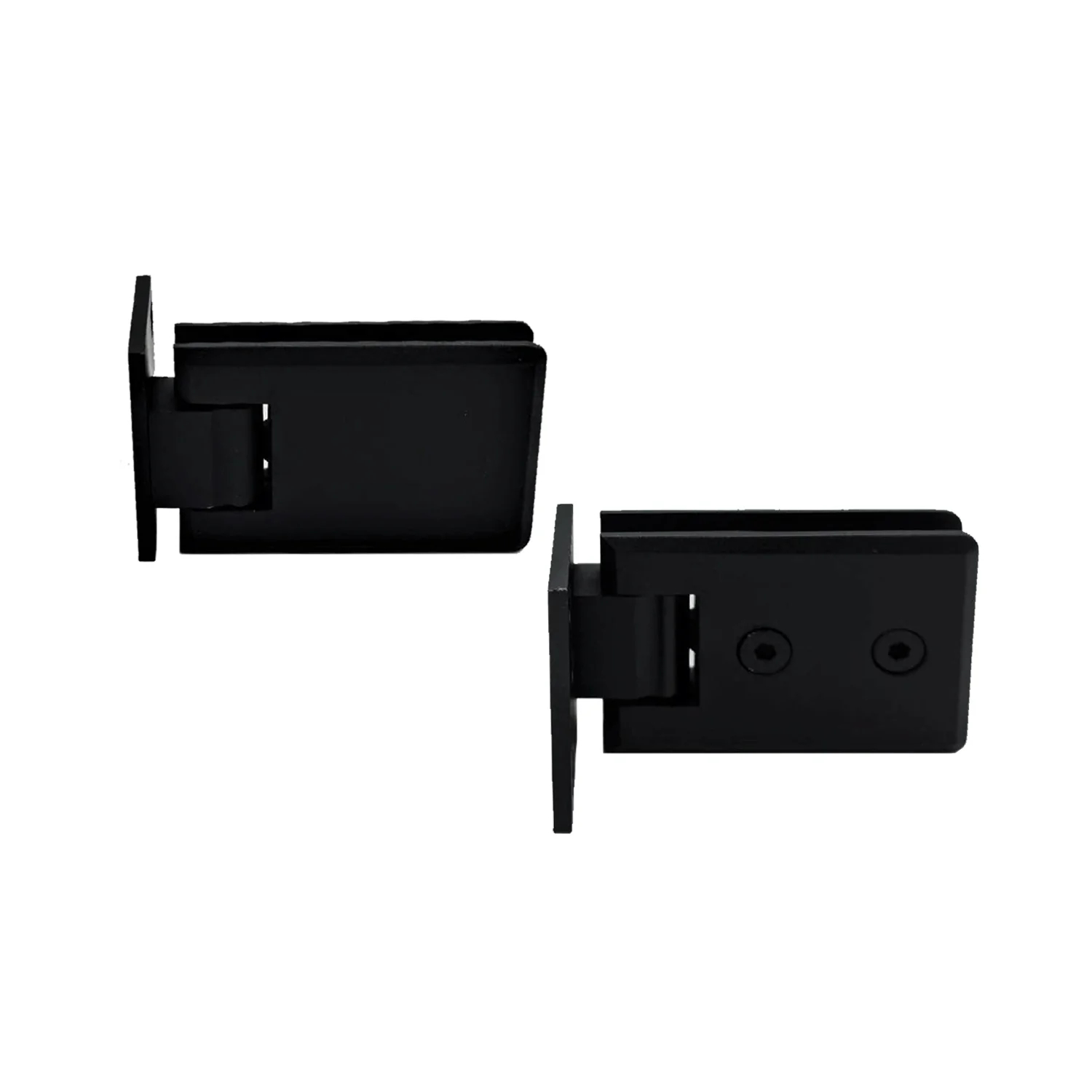

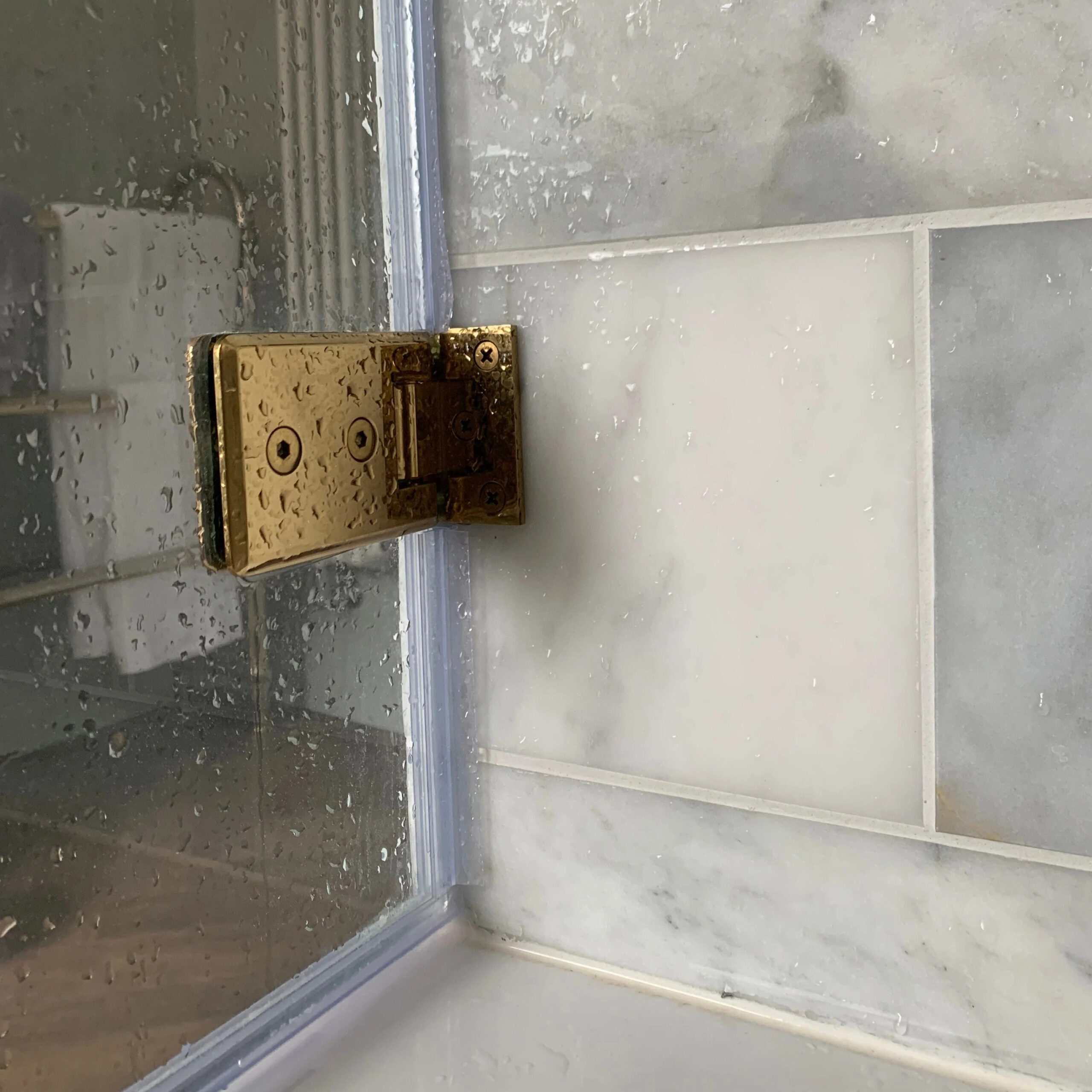

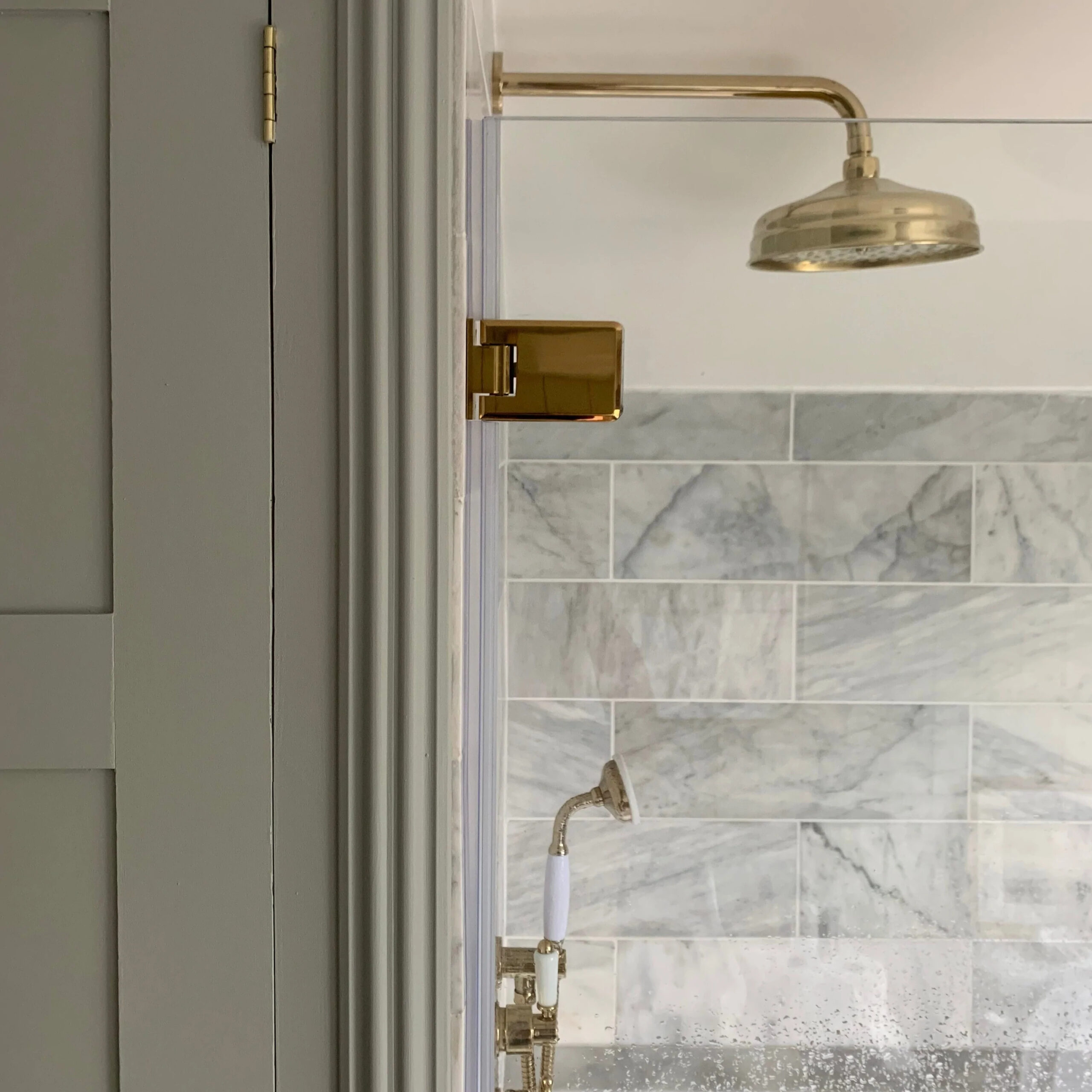

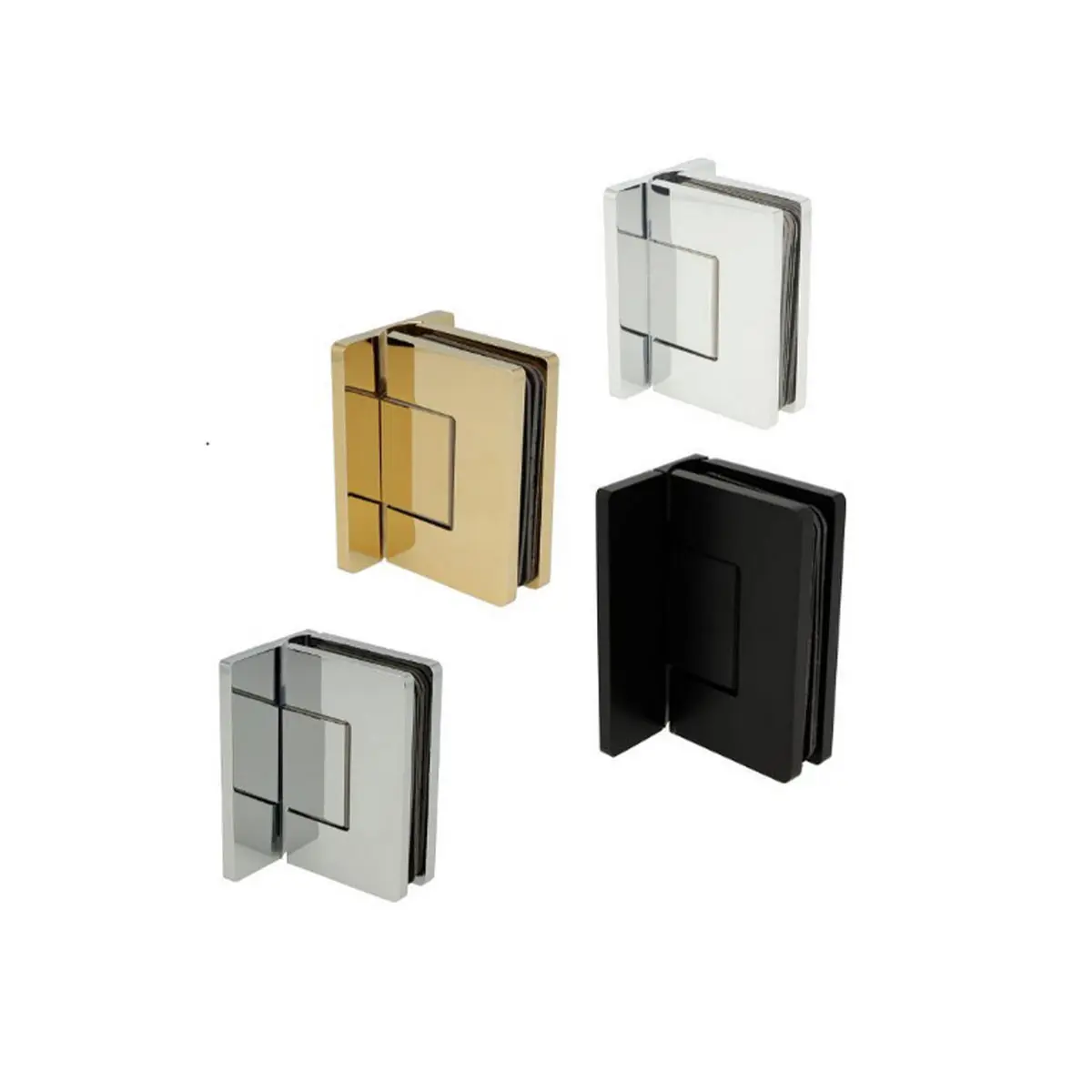

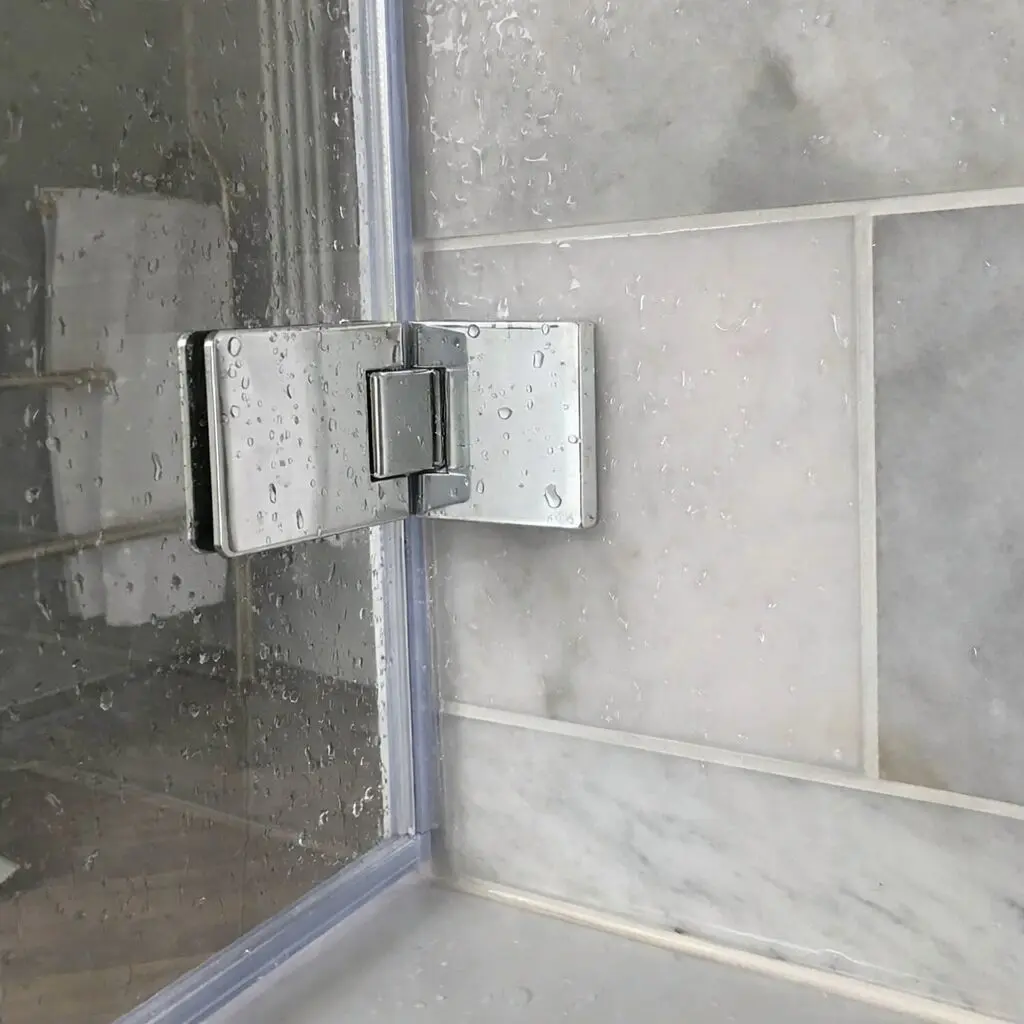

    Our glass-to-wall hinges are available in chrome, stainless steel, matt black, brushed brass, and polished brass.

    They are reversible, opening 90° in and out, and can be fitted on the left or right of the bath, making them suitable for most applications.

    Before ordering, be sure to check swing allowance, as regular collisions with towel rails, radiators, or basins can damage the glass.



    Delivery and Lead Times

    Every glass bath screen is made to order in the UK.

    Lead times and delivery costs depend on your order size and postcode, and will be calculated at checkout.

    Glass Type

    Estimated Lead Time

    Standard toughened made-to-measure shower glass   5 – 7 working days
    Standard toughened made-to-measure screens with straightforward processing  5 – 7 working days
    More complex shapes, processing, or specialist finishes 7 – 10 working days

    These are estimates rather than guarantees. For the most accurate lead time for your specific order, check the dispatch time, which will be confirmed at checkout, or call our team before you order on 020 8500 1188.

    You can also get in touch to ask about rush orders if you need a faster turnaround.

    Delivery region

    Estimated Delivery Time

    Most of the UK  10 – 15 working days
    Cornwall, Devon, Wales, and Scotland  15 – 20 working days



    Specifications

    • Height: 1500mm
    • Width: 600mm, 700mm, or 800mm
    • Glass: 8mm clear toughened safety glass, polished edges

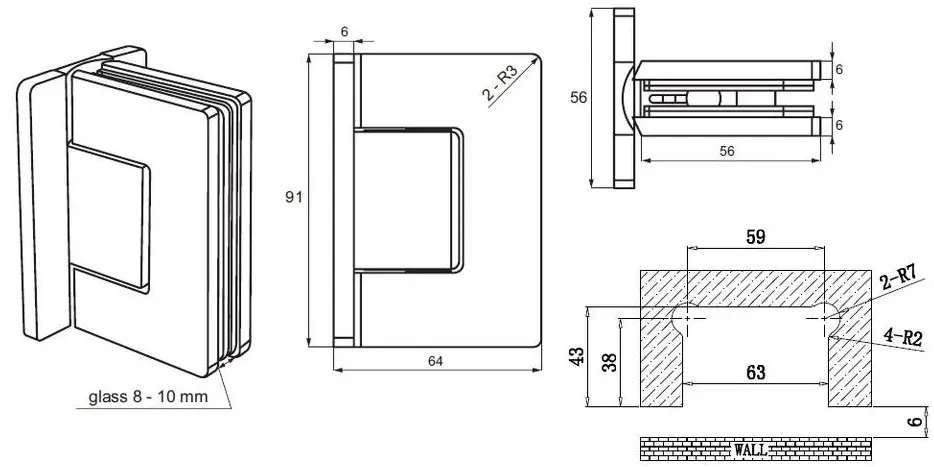

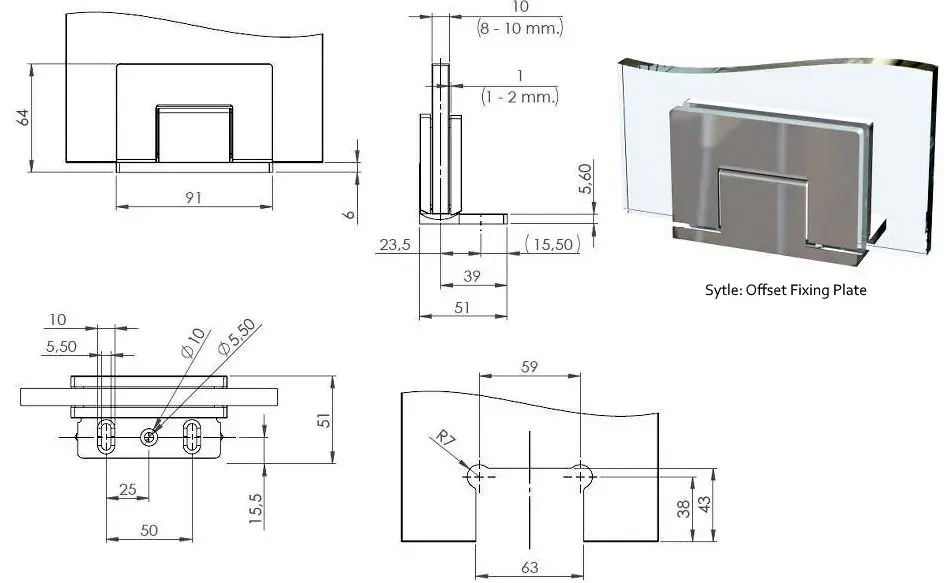

    • Hinge Type: Glass-to-wall, 90° opening in both directions
    • Hinge Finishes: Polished or Brushed Brass, Matt Black, Chrome plated, or Stainless steel
    • Hinge Capacity (2 Hinges): Max Door Width 800mm, Max Door Weight 40kg



    Need Help with Your Order?

    If you need more information about our products or help placing an order, get in touch for assistance from The Glass Warehouse team.

    You can call us on 020 8500 1188 or fill out our contact form with as much detail as you can give us about your glass bath screen requirements, and we’ll get back to you ASAP.
