Custom Painted Kitchen Splashback

Please note to allow a 2mm tolerance in all designs. All internal notches will have a 7mm radius to ensure structural integrity during the toughening process.

• Width (A) mm *

  Max: 3000

• Height (B) mm *

  Max: 3000

• Side (C) mm *

  Max: 3000

• Side (D) mm *

  Max: 3000

• Side (E) mm *

  Max: 3000

• Dimensions Calculator *
• Rectangle Dimensions Calculator *
• Single Dimensions Calculator *

•
   Adhesive *
•
   Drilled Holes *
•
   Screws (4pk) *
•
   Sockets *

• Adhesive Quantity *

  Min: 1

• Number of Drilled Holes *

  Min: 1

• Screw Pack Quantity *

  Min: 1

• Number of Sockets *

  Min: 1

• Options Extra Costs *

•  Do you need hinge / socket cut outs? *

  If you order hinges from The Glass Warehouse we will provide the correct hinge cut outs. Alternatively, upload your hinge design and technical drawings. If there are any problems one of our customer service representative will contact you regarding your exact requirements if needed.

• Hinge cut outs qty *

  Min: 1

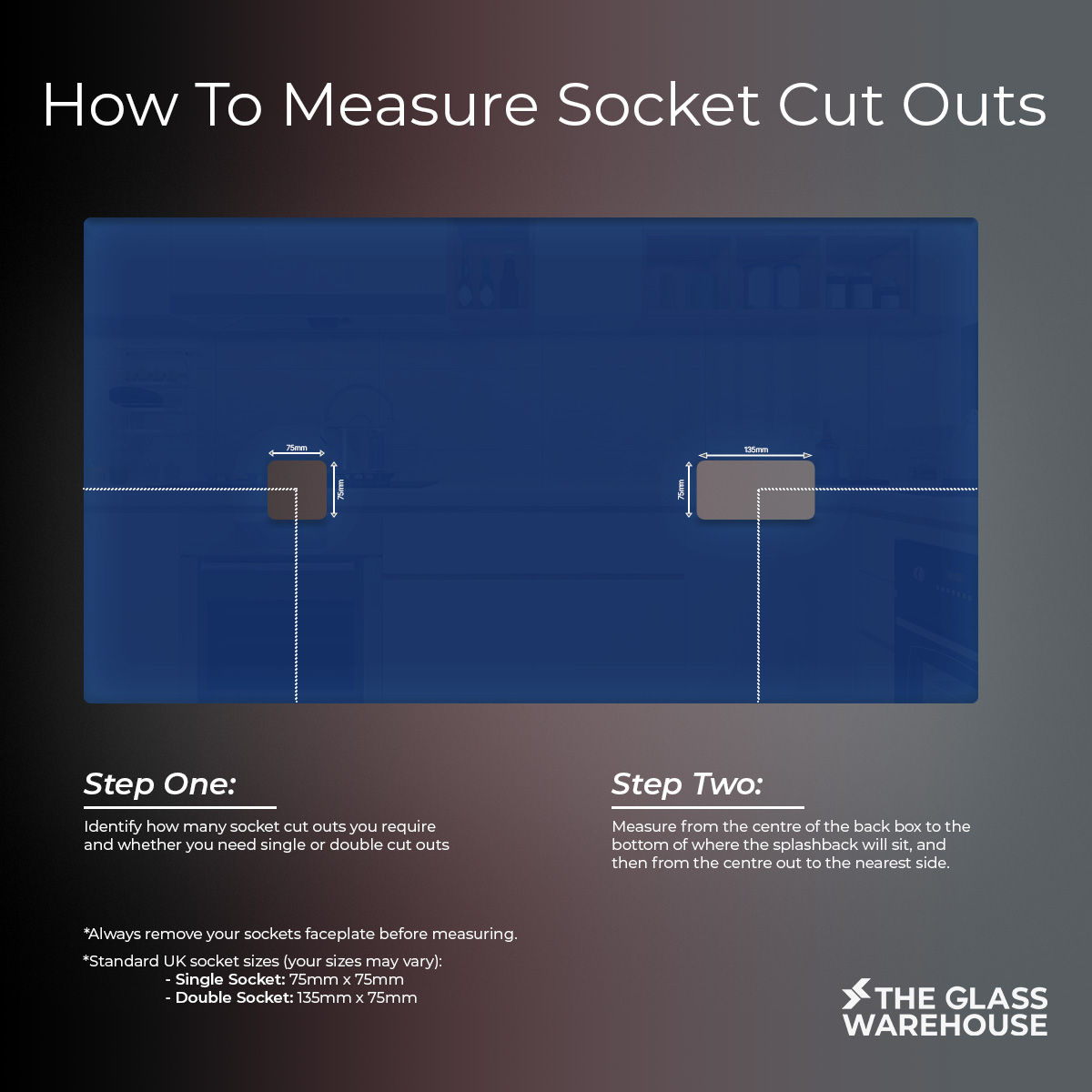

•  Do you need notches/socket cut outs? *

  Any polished notches/socket cut outs will have an internal radius of at least 14mm. Non polished notches/socket cut outs will be approximately 7mm internal radius. A customer service representative will contact you regarding your exact requirements if needed. Please upload any if possible.

• Notch/socket cut outs qty *

  Min: 1

•  Do you need drilled holes? *

  Any drilled holes must be the same size or greater than the thickness of your glass selected. (For example 10mm glass can only have a hole of 10mm in diameter or greater). Drilled holes must be within reasonable distance from edge of the glass or other holes / cut-outs to prevent breaking when toughened. A customer service representative will contact you regarding your exact requirements if needed.

• Drilled holes qty *

  Min: 1

• Drilled holes size (mm) *

  Drill holes may be needed if you are considering fixing glass to a wall or to another object. This may be the case if purchasing glass for a kitchen splashback, table top or shelve. The minimum drill hole size must be equal to or greater than the thickness of the glass. The holes must be placed at least five times the thickness of the glass from the edge to centre of hole.Min: 6Max: 65

•  Do you need radius corners? *

  A rounded corner with a polished finish. A customer service representative will contact you regarding your exact requirements if needed. All sides must be a minimum of 150mm.

• Radius corner qty *

  Min: 1

• Radius corner size (mm) *

  Tell us the radius size you require. This can range from 2mm to 100mm. This is dependent on the size of your glass. One of our customer service representatives will contact you regarding any issues.Min: 2Max: 100

•  Do you need dubbed corners? *

  The immediate sharpness of the corner(s) removed with grey finish. A customer service representative will contact you regarding your exact requirements if needed.

• Dubbed corners qty *

  Min: 1

•  Do you need polymer coating? *

  Polymer coating protects glass with a barrier that repels water, soil, stains, soap scum, rust and hard water mineral deposits.

• Glass Extra Polymer Coating Calculation *
• Glass Extra Polymer Coating Calculation - Circle Single Dimension *
• Glass Extra Polymer Coating Calculation - Quadrant Single Dimension *
• Upload diagram or drawings *

  Remove

  Please share all diagrams, drawings and specifications (maximum of 10 files allowed)Max file size: 12 MBPermitted file types: jpg jpeg jpe png gif

• Glass Extras Calculations *

• Choice of Colour *

  •  Default
  •  Pantone®
  •  Dulux
  •  RAL
  •  Crown
  •  F&B
  •  Valspar
  •  Other
• Enter your colour name or colour code *

  You can find relevant colour codes for different providers using the links below: Dulux Pantone RAL Crown Farrow Ball Laura Ashley
