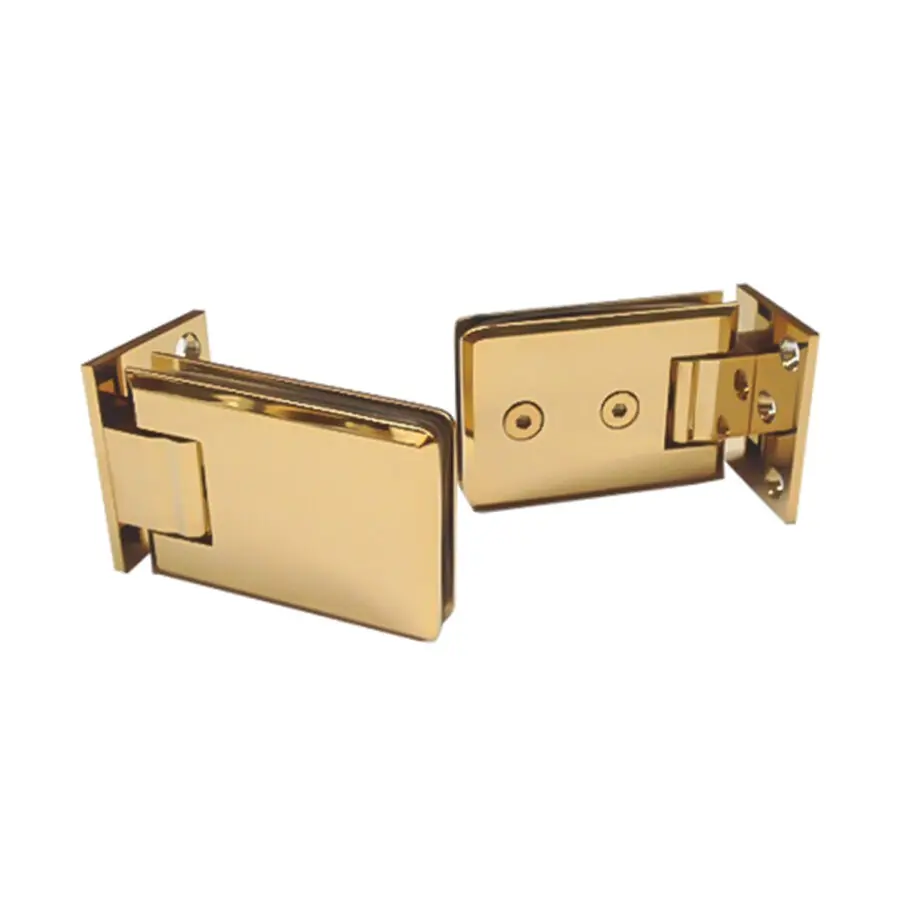

Polished Brass Glass to Wall 90 Degree Door Hinge (Single)

Wall Mounted, Polished Brass Glass Door Hinge. 90 Degree Opening in Both Directions, with Automatic Closing when open less than 25 degrees. Product Includes necessary Allen Keys and Glazing Washers. Fixing Screws provided as standard, however alternative fixings may be required subject to application and structural requirements.

*Pack of 1

Product Dimensions

92mm (w) x 60mm (h)

Glass Specification

Suitable for 8mm & 10mm Toughened Glass. Glass Preparation & Reduction Required.

Material Specification

All Components in Polished Brass

Environment Compatibility

Suitable for indoor and outdoor use (not suitable for marine environments).

Design Compatibility

Suitable for Shower Enclosures, Wet Rooms, Bath Screens, and Glass Doors.

Hinge Capacity

Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg

Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg

Clamping screws to be tightened to 8-10 Nm
