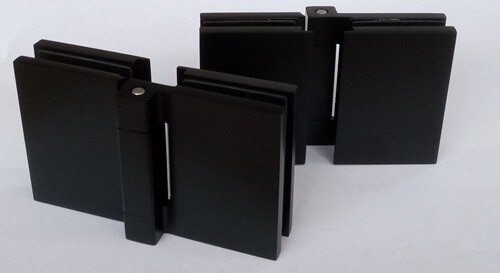

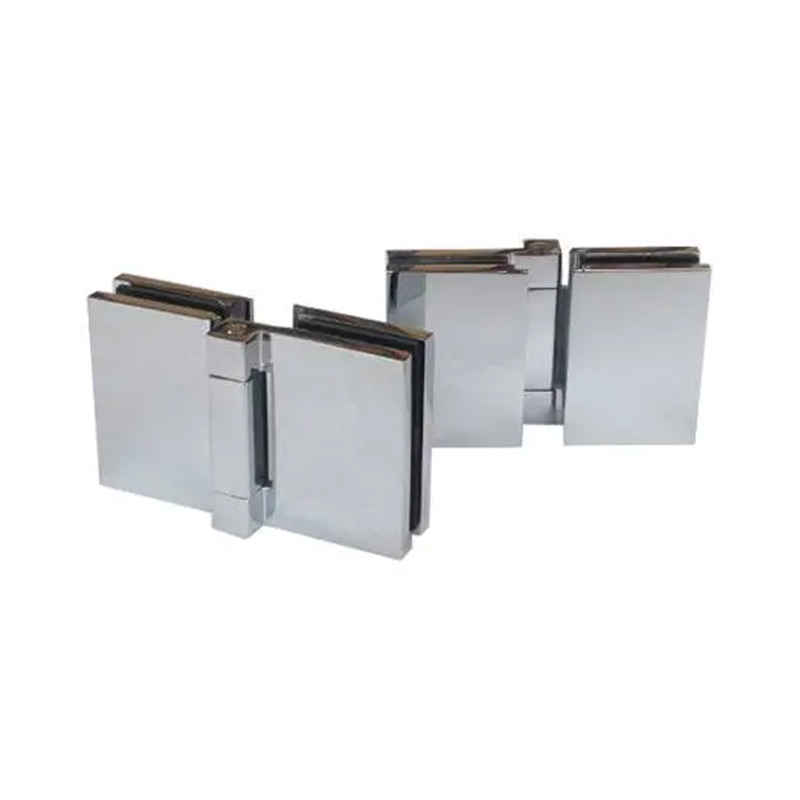

Glass to Glass Free Pivot Hinge Concealed Fixings (Single)
From £67.98 inc. VAT
Product Description
Glass to glass hinge with cover plates to hide all fixings. Product includes necessary hardware and gaskets.
*Pack of 1
Product Dimensions
114mm(w) x 70mm(h) including covers.
Glass Specification
Suitable for 8 to 10mm toughened glass. Glass preparation & reduction required (please see product drawings).
Material Specification
All visible components of this glass to glass hinge are in brushed nickel plated, polished chrome, or matt black finish brass.
Environment Compatibility
Suitable for indoor and outdoor use (not suitable for marine environments).
Design Compatibility
Suitable for shower enclosures, wet rooms, glass doors, balustrade gates.
Hinge Capacity
Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
Clamping screws to be tightened to 8-10 Nm
Product Additional information
| Colour | Black, Brushed Chrome, Polished Chrome |
|---|
