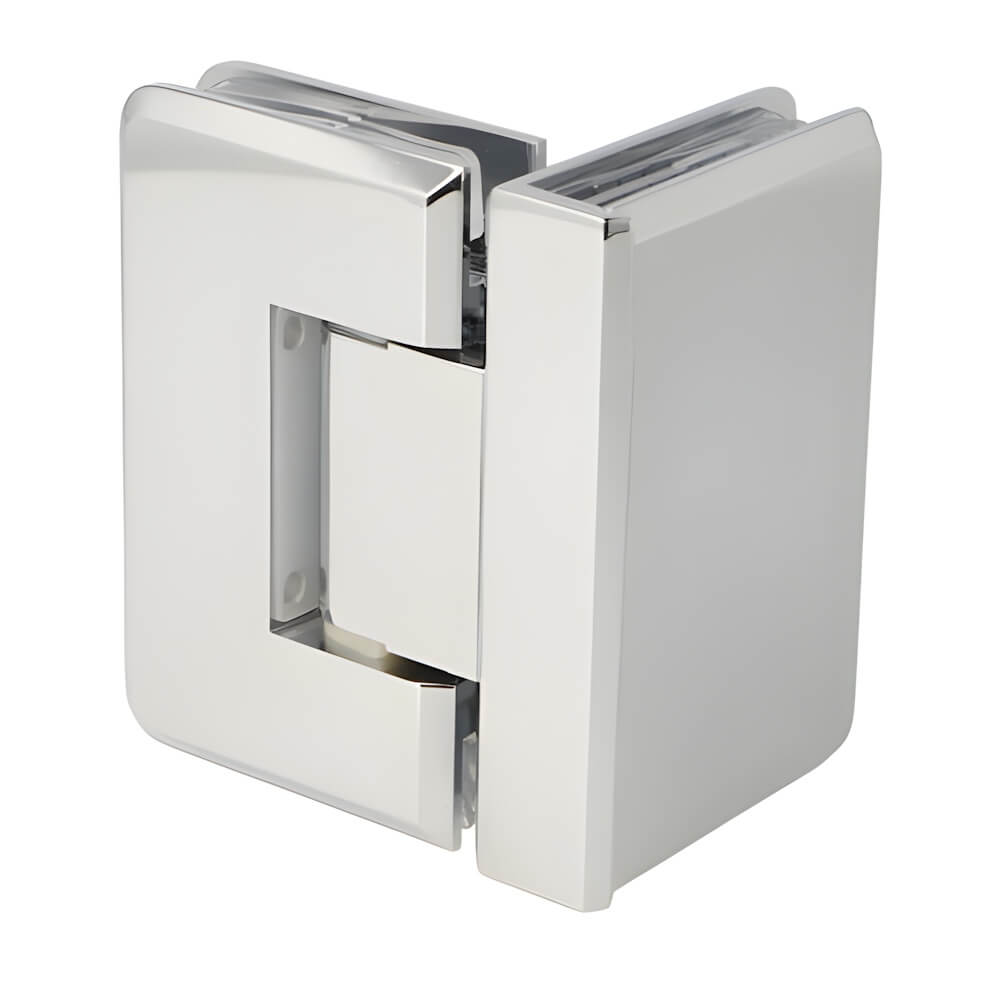

90° Glass-to-Glass Shower Door Hinge (Single)

£45.00 inc. VAT


Product Description

  • Glass compatability: 6mm, 8mm, 10mm
  • Material: Brass construction with precision machined stainless steel components
  • Colour(s): Chrome plated (Mirror polish)

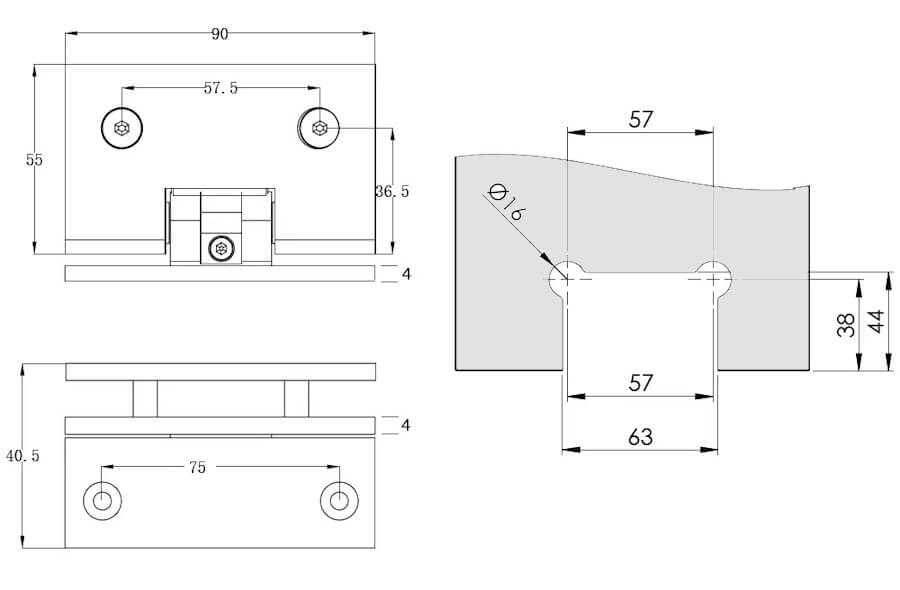

  • Glass Cut-out required in glass
  • Opening: Dual action springs. 90° Inwards and outwards opening
  • Closing: Self-closing from approx. 25°-30°
  • Capacity:
    • 2 hinges – Door weight (max) 40kg, Door width (max) 800mm
    • 3 hinges – Door weight (max) 55kg, Door width (max) 900mm
Weight Chart
Glass Thickness 6mm 8mm 10mm
Approximate Weight 13.75kg/m2 18.305kg/m2 23.00kg/m2

Please Note: All specs are for reference purposes and are subject to change without prior notice.
