Banana Slide 50 Ceiling Mounting for 8mm – 10mm glass

From £252.00 inc. VAT

6.2 x 5.7 x 200cm
6.2 x 5.7 x 250cm

Product Description

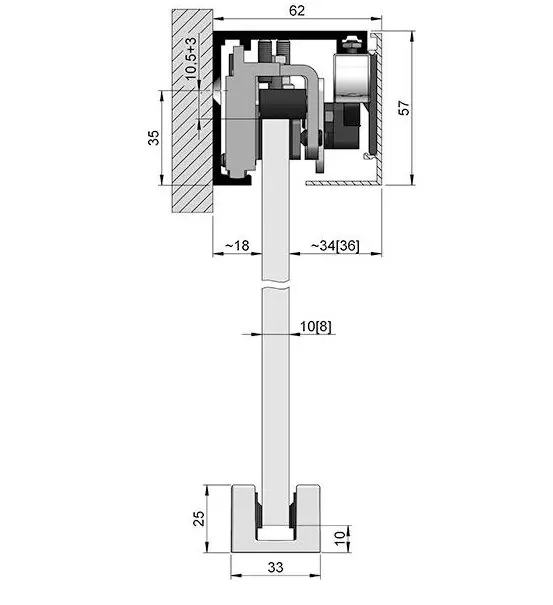

Stylish and easy ceiling mounted sliding door system for glass doors 2000 x 1000mm or smaller – technical diagram can be downloaded here.

Product Dimensions

57mm(h) x 62mm(w) x 2000mm (l)
57mm(h) x 62mm(w) x 2500mm (l)

Glass Specification

8mm to 10mm glass thickness

Material Specification

Natural anodised (RAL 9005 matt and Stainless steel look also available, call 020 8500 1188 for more information)

Environment Compatibility

Suitable for indoor use

Design Compatibility

– Door weight max. 50 kg
– Minimum distance to the wall: 18mm
– Door dimensions are determined by the max. door weight and a width-to-height ratio of 1:2.5
– Double doors with double-sided soft closing system
– Door width 700mm

YouTube video

Product Additional information

Size (W) x (H) x (L) cm

6.2 x 5.7 x 200cm, 6.2 x 5.7 x 250cm



Product Downloads
