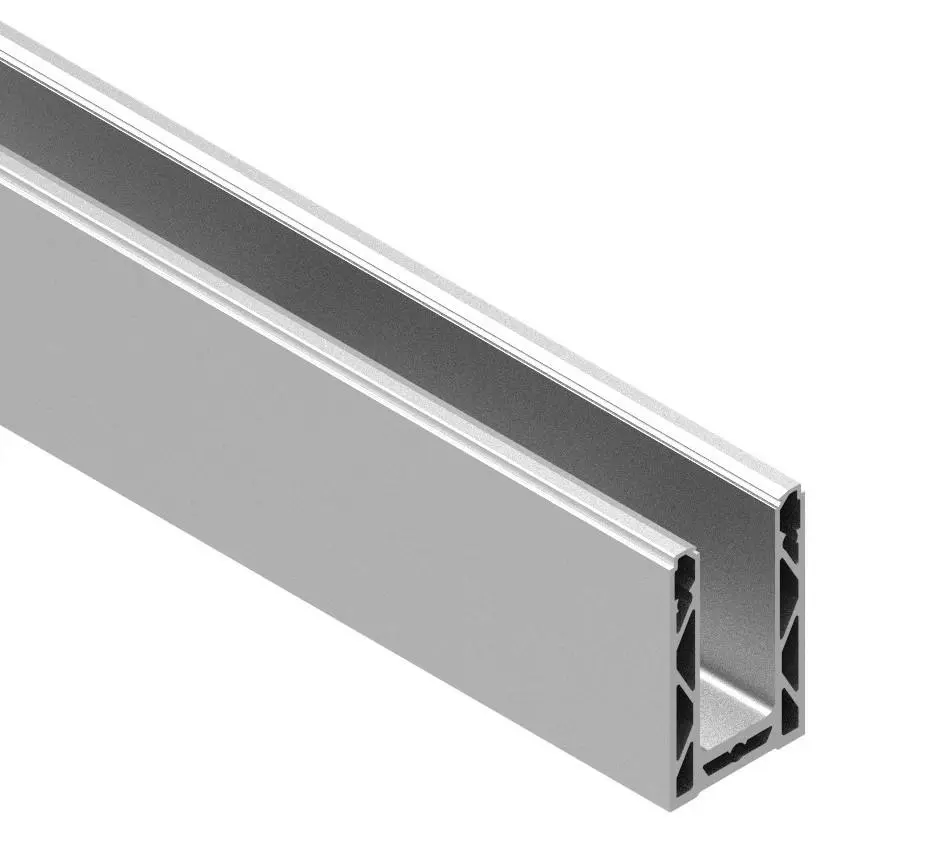

3M Glass Balustrade Channel with Wedge Kit and End Caps

Our 3000mm aluminium glass balustrade channel system provides a strong, reliable, and stylish solution for frameless glass balustrades. Designed for both concrete and steel base fix applications, this system offers tested performance in line with UK safety requirements while maintaining a sleek, minimal aesthetic.

Key Benefits

• Independently tested on both concrete and steel substrates to withstand line loads of up to 1.5kN/m (depending on glass thickness).
• Suitable for glass thicknesses ranging from 17mm to 21mm with precise deduction allowances to ensure a secure fit.
• Incorporates adjustable wedges and snap-on bead strips with integrated rubber gaskets for quick alignment and reliable sealing.
• Manufacturerd from high-grade aluminium, resistant to corrosion and designed for long-term use in both internal and external applications.
• Frameless finish maintains unobstructed views, making it ideal for balconies, terraces, stairwells, and commercial spaces.

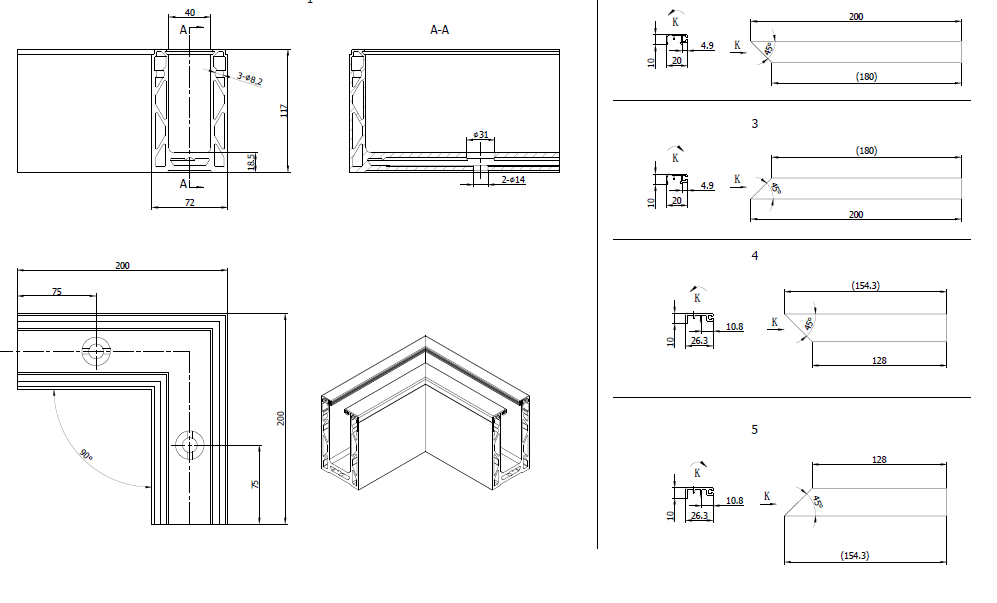

This 3 metre base fix channel is engineered to provide structural integrity for frameless glass balustrade installations. Supplied in 3000mm lengths, the channel accomodates multi-panel configurations and can be joined seamlessly using connector pins ot adjusted for corner applications.

The channel should be secured to the substrate with M12 anchor bolts at 200mm centres, ensuring maximum load distribution. installation is supported by an intuitive wedge system, which allows for fine glass alignement, and removable bead strips with rubber gaskets that lock panels securely in place.

Tested extensively with toughened and toughened laminated safety glass across thicknesses of 17.52mm, 19mm, and 21.52mm, the system has demonstrated compliance under line loads up to 1.5kN/m, meeting the requirements for domestic, commercial, and public safety applications.

The system is shipped with 2 end caps, drill bit, and wedge kit, while the integrated drainage holes help maintain long-tewrm performance in exposed outdoor environments.

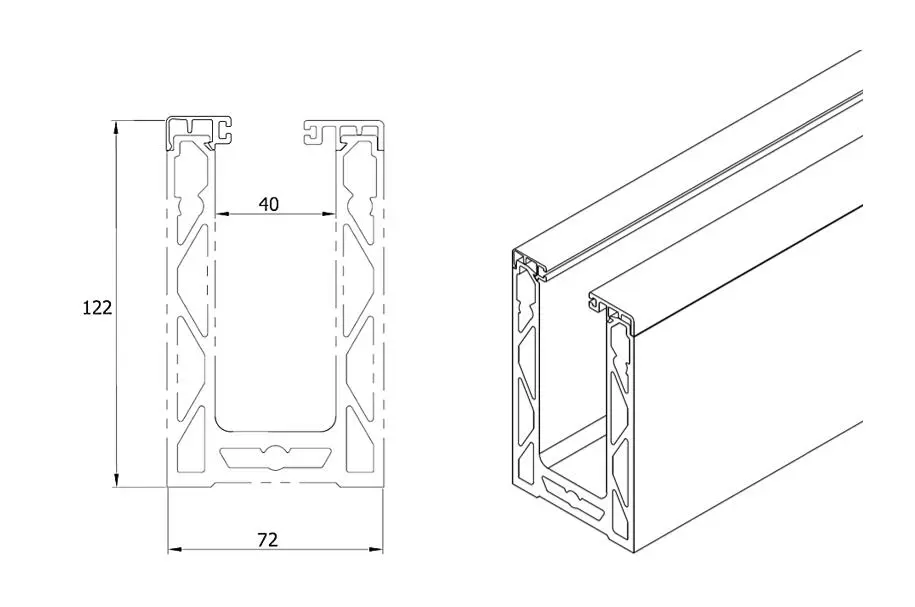

Balustrade Channel Technical Specifications

• Length: 3000mm (3M)
• Material: Aluminium alloy channel with anodised finish
• Finish(s): Silver, Black, Anthracite Grey

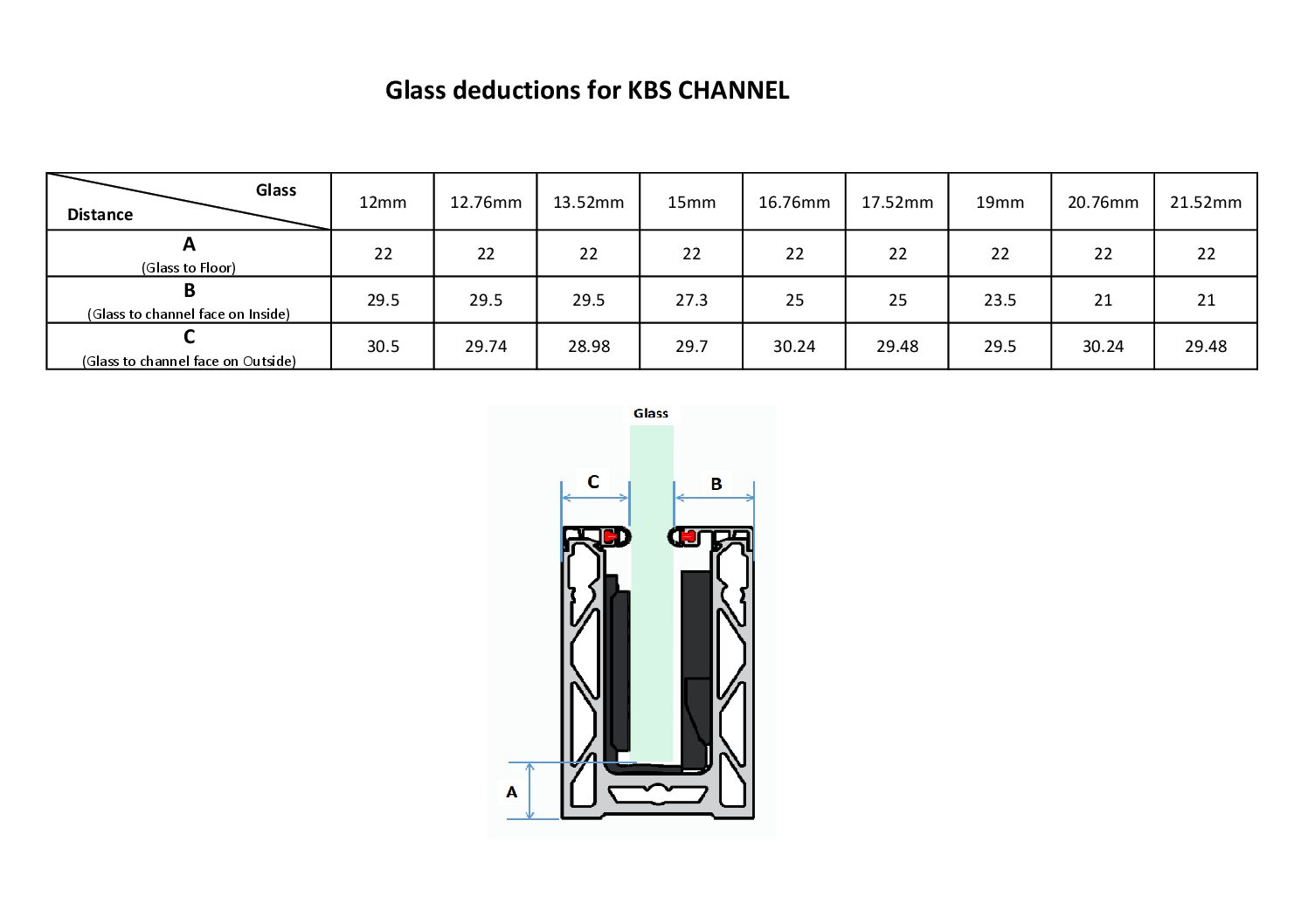

• Glass Thickness Range: 17mm – 21mm (see deduction PDF for fitting tolerances) – for thinner glass please contact us.
• Fixing Type: Base fix. Suitable for concrete or steel substrates
• Fixings: M12 bolts at 200mm centres (not included)
• Performance:

• What’s included:
  • Adjustable wedge kit

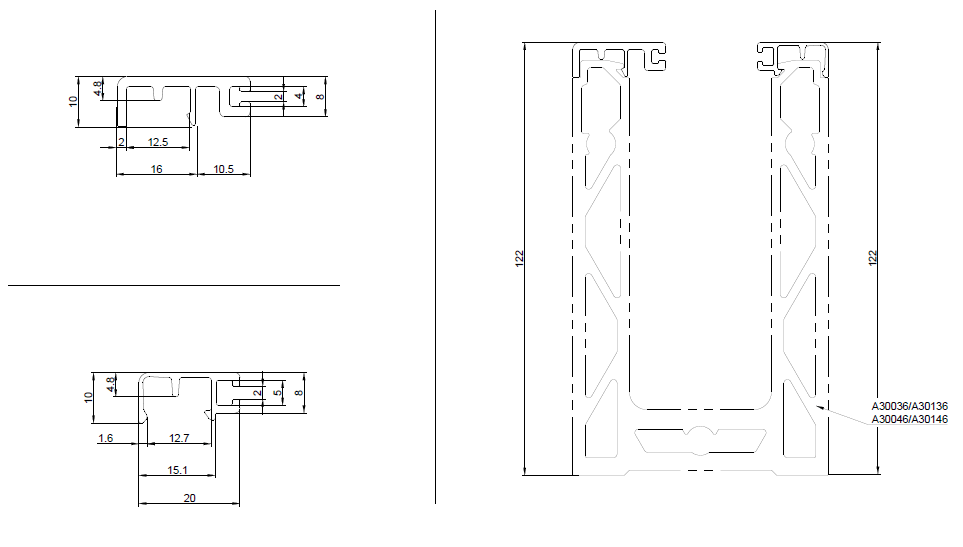

  • Bead strips with gaskets
  • 2 x end caps
• Applications: Balconies, terraces, staircases, atriums, and internal partitions

Trust & Certification

• Independently load tested on both concrete and steel substrates
• Complies with UK building safety standards for structural glass balustrades
• Manufactured to strict quality standards with full technical documentation available
