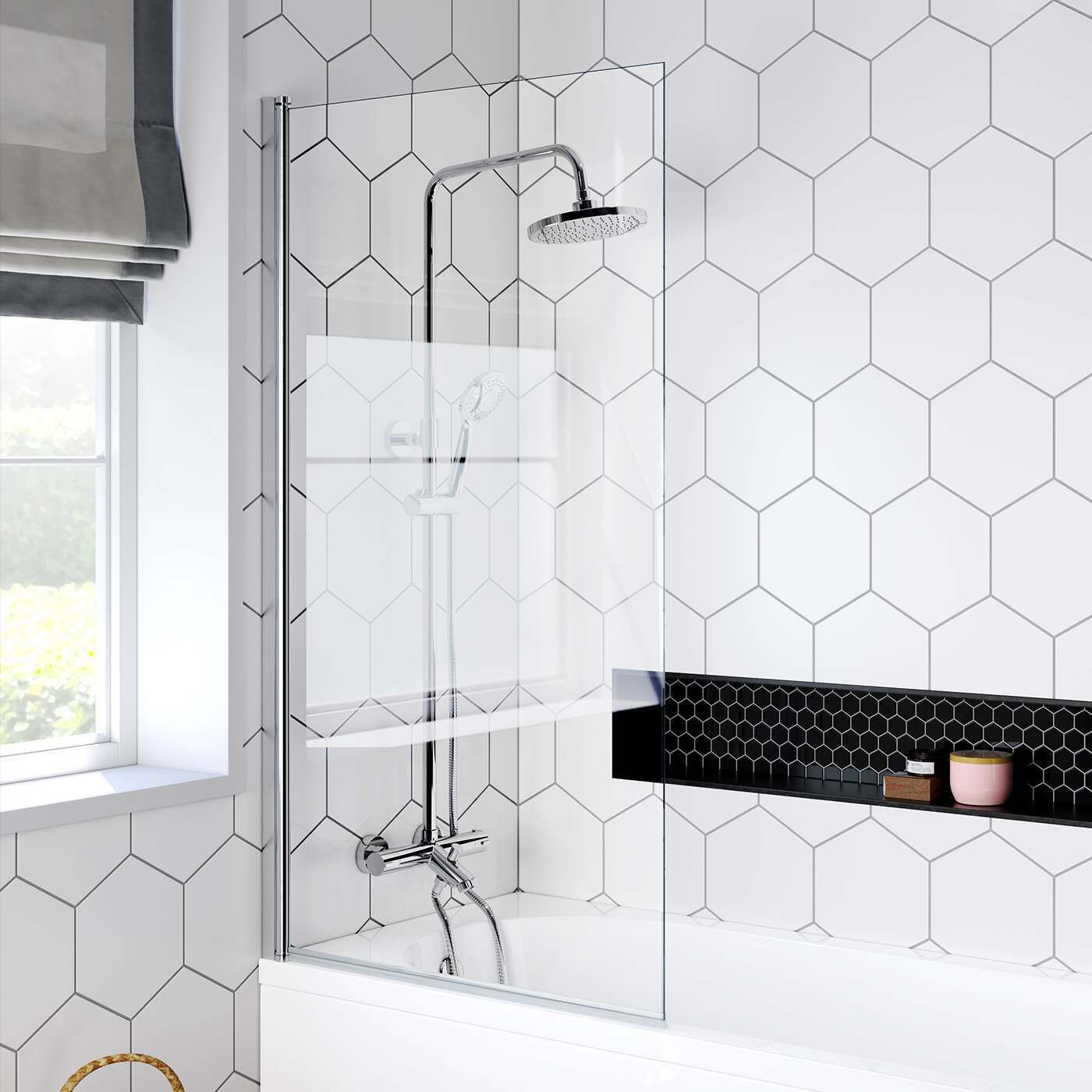

Wall Mounted Bath Screen Pivot Hinge
Glass Fittings
From £186.97 inc. VAT
Product Description
Full-length pivot hinge for glass shower screens.
Wall Profile Hinge Features
- Bi-directional swing motion. Hold open at 90° opening
- Adjustable Zero Position: Yes
- No hole drilling or cut-outs required. Use Silicone to secure glass panel
What’s Included
- 1x Wall Profile Hinge
- 1x Intermediate Profile
- 1x Glass profile
- 1x Accessory Pack:
- Top Pivot Cap
- Bottom Pivot Cap
- Fixings
- Instructions
Bath Screen Pivot Hinge Technical Details
- Length:
- For 6mm Glass: 1900mm (can be cut to required size)
- For 8mm Glass: 2200mm (can be cut to required size)
- Glass Thickness: 6mm, 8mm
- Material: Aluminium
- Finish: Polished Aluminium, Satin Anodised Matt Black
- Max Glass Size:
- For 6mm glass: L 1900mm x W 800mm
- For 8mm glass: L 2187mm x W 800mm
- Maximum Load Capacity:
- For 6mm glass: 23kg
- For 8mm glass: 36kg
Product Additional information
| Colour of Hinges | Matt Black, Polished Aluminium |
|---|---|
| Glass Thickness | 6 mm, 8 mm |
Product Downloads
