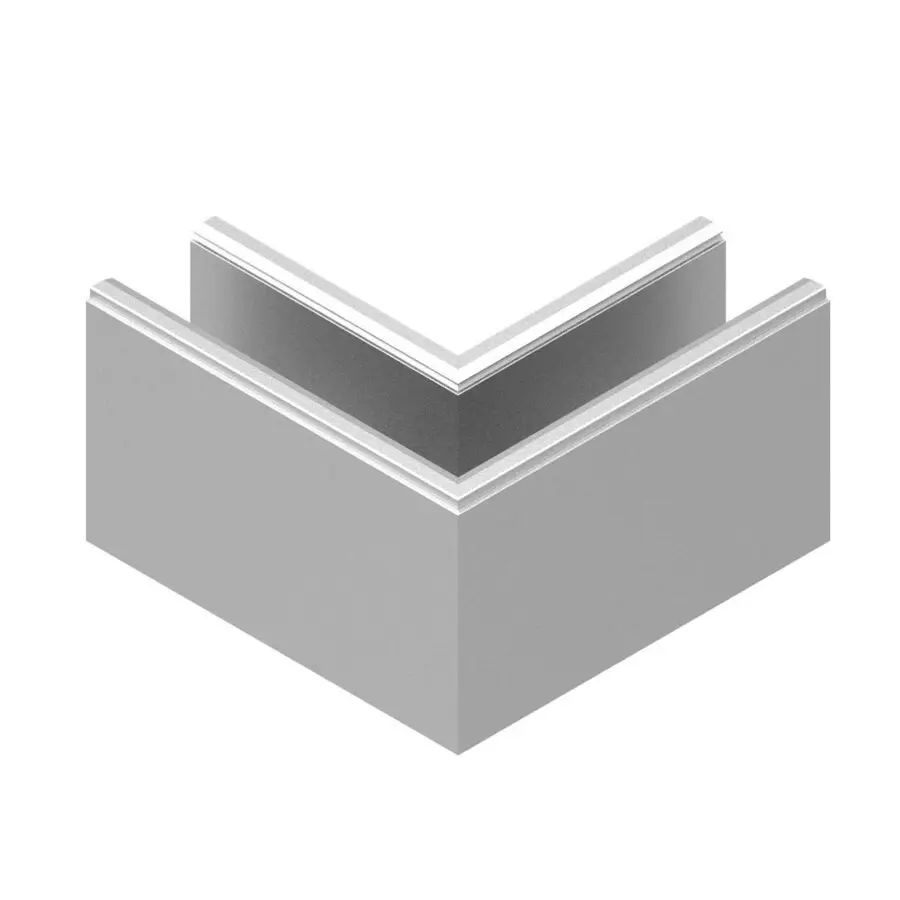

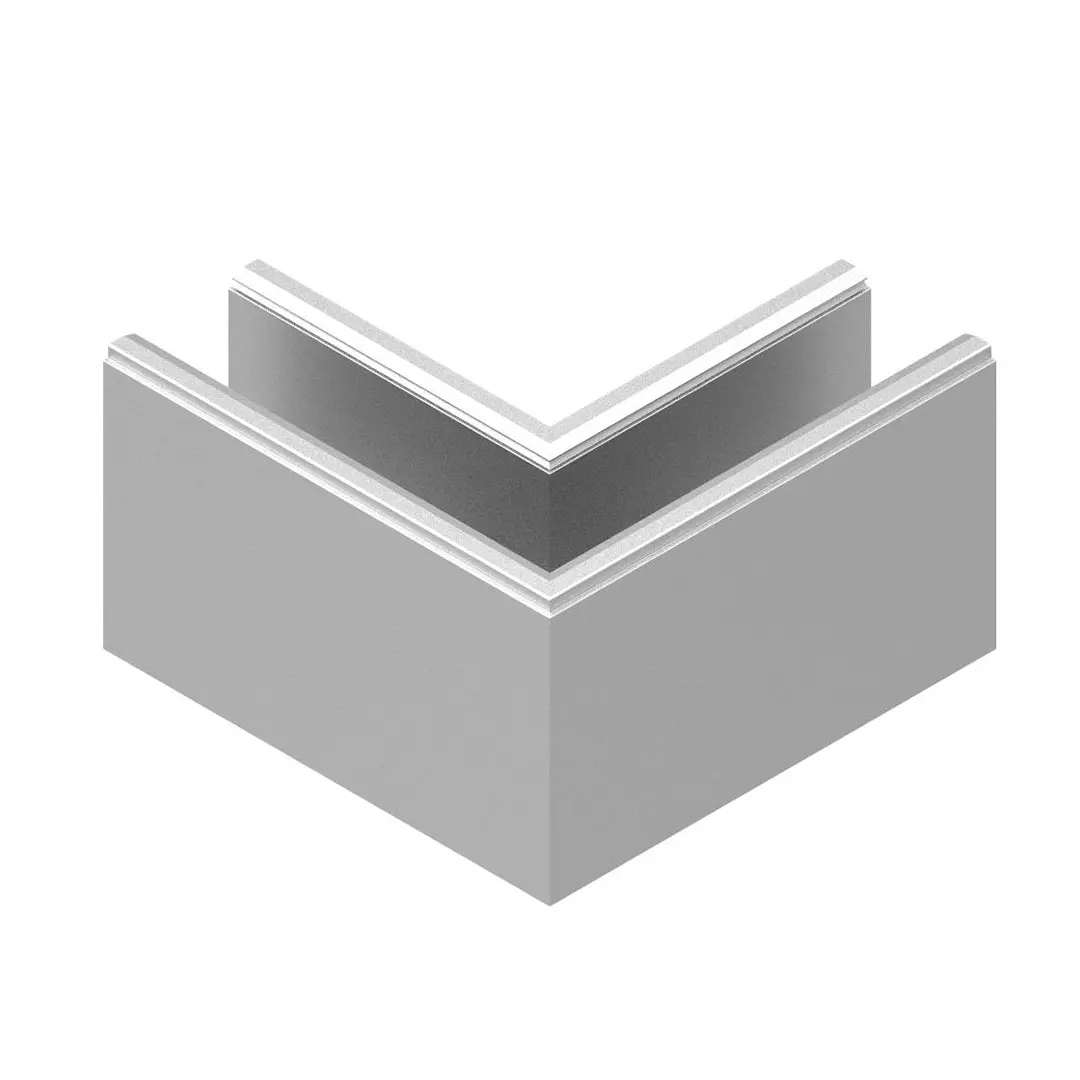

90° Corner For Glass Balustrade Channel

Our glass balustrade channel corners are precision-engineered accessories designed exclusively for use with our 3 metre balustrade channel. These corner profiles allow you to create seamless 90° transitions without the need for on-site mitre cutting, ensuring accuracy, strength, and a professional finish throughout your frameless balustrade system.

Benefits

• Built to connect with our balustrade channel lengths for a consistent system
• Engineered to maintain load-bearing performance at angled junctions
• Matches the anodised aluminium of the main channels for a uniform look
• Pre-formed cotner sections eliminate complex cuts and speed up fitting
• Suitable for internal and external corner configurations

These aluminium corners provide strength and alignment at junctions where two channels meet. By using pre-fabricated corners, installers avoid inaccuracies from manual mitre cuts, achieving a continuous frameless appearance with improved efficiency.

Each corner is supplied with connector pins for straightforward integration with channel lengths, ensuring precise glass spacing and stability across the system. Compatible with 17.52mm, 19mm, and 21.52mm glass panels, the corners use the same bead strip and gasket locking method as the straight channels for secure retention and consistent performance.

Technical Specifications

• Material: Aluminium alloy
• Glass Thickness Range: 17.52mm – 21.52mm
• Connection Method: Connector pins (included)
• Finish(s): Silver, Black, Anthracite Grey
• Applications: Balconies, terraces, staircases, atriums, and partitioned layouts with angled runs

Trust & Compatibility

• Designed exclusively for use with our 3000mm balustrade channels
• Manufactured to the same high-quality standards for strength and durability
• Supports compliance with UK building regulations when installed as part of the complete system
